FORESTRY

Primex LogStomper tires feature the latest tire technology including proprietary SteelFlex construction. This design combines the best features of Aramid fiber (KEVLAR®) and Steel for dramatic resistance to tread and sidewall penetration. LogStompers are available in the widest range of sizes, patterns and construction configurations in the industry. LogStompers are available for log skidder and cut-to-length (CTL) operations.

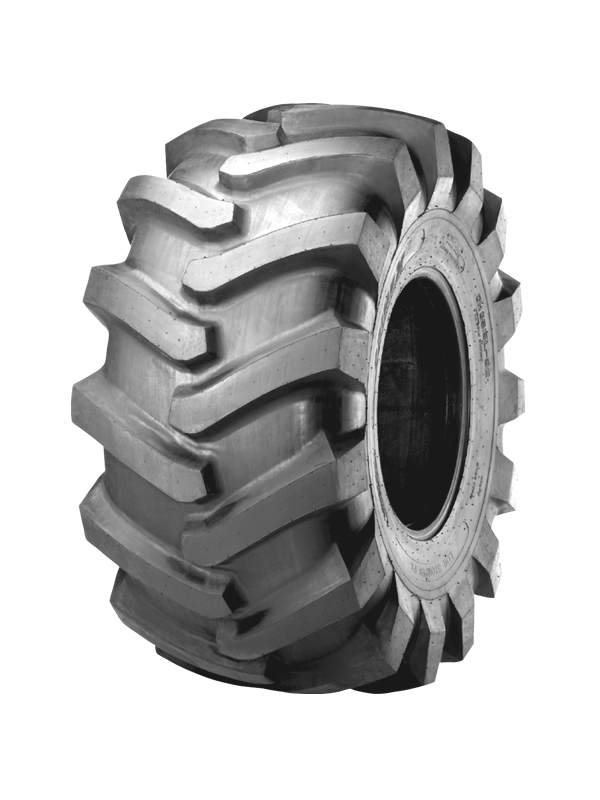

PRIMEX LOGSTOMPER FX STEEL LS-2

The LogStomper FX Steel sets the standard in forestry tires with 23 degree tread bars, more lugs and wider lugs than the competition. It also features side bar protection and reinforced sidewalls. The LogStomper Fx is the toughest forestry tire available.

applications

Grapple Skidders

code	size	type	pr	rim	wt	ns	od	sw	slr	l.c.c.@ap	sp
										lbs@psi
450513	23.1-26	TT	16	DW20A	583	67	64.3	23.1	28.7	13900@40	5
450519	28L -26	TT	20	DW25A	724	72	64.7	28.1	28.8	15960@40	5
450584	24.5-32	TT	20	DH21/DH21H	730	75	71.1	23.5	31.7	18200@45	5
450589	30.5-32	TT	20	DH27/DH27H	980	76	73.5	30.5	32.8	18480@35	5
450100	30.5-32	TL	26	DH27/DH27H	1186	76	73.5	30.5	32.8	22000@45	5
450590	35.5-32	TT	20	DH31/DH31H	1275	80	79.8	34.6	35.4	22500@30	5
450882	35.5-32	TL	20	DH31/DH31H	1411	80	79.8	34.6	35.4	16100@25	5
450101	35.5-32	tl	26	DH31/DH31H	1493	80	79.8	34.6	35.4	27000@40	5
450594	78x4500-32	tl	20	dh41/dh41h	1151	80	78.0	45.0	35.7	17600@20	5
